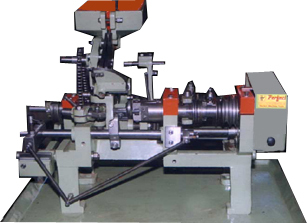

Automatic Screw Head Slotting Machine

Name: Automatic Screw Head Slotting Machine
Brand: PERFECT MACHINE TOOLS
Price: 2000000 INR
Availability: InStock

Price 2000000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Automatic Screw Head Slotting Machine Specification

Product Type
Slotting Machine

Wire Material
Steel

Voltage
220V / 380V

Power
2 HP

Dimension (L*W*H)
1350 mm x 650 mm x 1100 mm

Usage
Automatic slotting of screw heads after heading process

Weight
Approx. 650 kg

Color
Industrial Blue / Grey

Safety Features
Emergency stop switch, protective guards

Applicable Screw Sizes
M2 to M6

Machine Structure
Heavy duty cast iron body

Control Type
PLC controlled panel

Feeding System
Vibratory bowl feeder

Air Pressure Requirement
6 bar (if pneumatic attachments provided)

Operation Mode
Fully automatic

Blade Type
High speed steel (HSS)

Capacity
Up to 100 pieces per minute

Noise Level
<75 dB

Slotting Accuracy
±0.05 mm

Coolant System
Integrated coolant system for slotting blade

Automatic Screw Head Slotting Machine Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
15 Pieces Per Month

Delivery Time
10 -45 Days

Main Export Market(s)
Australia, North America, Eastern Europe, Central America, South America, Asia, Africa

Main Domestic Market
All India

About Automatic Screw Head Slotting Machine

Automatic Screw Head Slotting Machine

With the assistance of our experienced and enthusiastic professionals, we manufacture and export an exclusive range of Automatic Screw Head Slotting Machine for our valued customers. Performance oriented, our entire range of slotting machines is used for manufacturing slots on heads of blank wood screws, machine screws, bolts and automobile parts. This Automatic Screw Head Slotting Machine is manufactured in compliance with international standards and is demanded in the market due to unmatched quality.

Key Features:

Simple in design and operation
High speed production
Longer functional life

Perfect Automatic Screw Head Slotting Machine is used to make slots on heads of blank wood screws, machine screws, bolts, cycle parts, automobile parts and other similar components. This machine is simple in design and operation. The slots are true, clean, deep and curved at bottom. Careful attention has been paid to automatic drum-type blank feeding mechanism. An aligned grip holds the blank screws while it is being slotted. Thus, giving a straight slot in the head of the screw. Comes with water coolant pump, which keeps the cutter cool.

Number of branded bearings have been used while manufacturing this machine which ensures to deliver high speed production and provide great saving of labour and lubrication cost. All cames, turn table, rollers and roller pins are made from high quality steel properly heat treated for long lasting durability.

Standard Accessories:

Water Coolant Pump

Optional Accessories:

Control Panel
Lubrication System

Product Details

Minimum Order Quantity	1 Piece
Type	Autometic
Usage/Application	Screw Head Slotting Machine
Material	Mild Steel
Phase	3 Phase
Model Name/Number	PSM
Number Of Strokes Per Minute	100
Brand	Perfect
Country of Origin	Made in India

Technical Specifications
Model	Length of blank	Wire Size (SWG)	Production Per Minute (in pcs.)	Power Required (H.P. X RPM)
PSM-2	3/8" to 2"	9 - 14	80 - 100	1 X 1440
PSM-3	1" to 3"	5 - 12	60 - 80	2 X 1440
PSM-4	1.5" to 4"	3 - 8	50 - 60	2 X 1440
PSM-6	2" to 6"	0 - 5	30 - 40	3 X 1440

Precision and Speed Combined

With a slotting accuracy of 0.05 mm and a swift processing capacity of up to 100 pieces per minute, this machine meets the demands of modern manufacturing. It supports standard screw sizes from M2 to M6, making it versatile for a variety of industrial applications where precision and output rate are critical.

Robust and Reliable Structure

The heavy-duty cast iron body gives the machine exceptional durability and long operational life, even in rigorous working conditions. Its PLC-controlled panel enables easy adjustments and monitoring, while integrated safety features such as an emergency stop switch and protective guards ensure operator peace of mind.

Efficient Feeding and Cooling Systems

A vibratory bowl feeder automatically and reliably directs screws into the slotting mechanism, minimizing manual intervention. The built-in coolant system effectively protects and extends the life of the high-speed steel blade, ensuring consistent performance during prolonged operations.

FAQs of Automatic Screw Head Slotting Machine:

Q: How does the automatic screw head slotting machine operate?

A: The machine operates fully automatically, starting with the vibratory bowl feeder aligning and feeding screws into the slotting station. A PLC-controlled panel manages the process, while a high-speed steel blade performs the slotting. The integrated coolant system keeps the blade cool, ensuring precise and safe operation.

Q: What are the main benefits of using this slotting machine in production lines?

A: Key benefits include high speed (up to 100 pieces per minute), exceptional slotting accuracy (0.05 mm), minimal noise (<75 dB), and minimal manual intervention. Its robust build and safety features enhance production efficiency, reduce operator fatigue, and support consistent product quality.

Q: When should I use this machine during the screw manufacturing process?

A: This slotting machine is designed for use immediately after the screw heading process, when the screws require accurate head slotting before further surface treatment or packaging.

Q: Where is this automatic slotting machine best utilized?

A: It is ideal for use by screw exporters, manufacturers, and suppliers who demand high-precision slotting and efficient, large-scale production. The machine is especially suitable for industrial settings where versatility, reliability, and productivity are essential.

Q: What screw sizes and materials can the machine accommodate?

A: The machine is engineered for screw sizes ranging from M2 to M6 and is suitable for processing screws made from steel wire, which is common in industrial fastening applications.

Q: How does the machine ensure operator safety during use?

A: Multiple safety features are integrated into the machine, including an emergency stop switch, protective guards, and a low-noise design. These measures help maintain a safe environment for operators during continuous operation.

Q: What process controls and adjustments are available on the machine?

A: A PLC-controlled panel provides intuitive operation and precise control over speed, slotting depth, and other key parameters, allowing operators to tailor the machines performance to specific production requirements.
